About Mini Logo™ Trucks

Skate Shop Day 2023 Exclusive!

AN UPDATE OF THE ORIGINAL STAGE 4!

SINGLE WING HANGER DESIGN INTRODUCED IN 1986
SUPERIOR TURNING

TRIED & TRUE CLASSIC
INDY TURNING GEOMETRY

SUPERIOR STABILITY
ORIGINAL CUSHIONS SIZED FOR THE PERFECT REBOUND

***Sold in a pair

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.

***Sold in a pair

Ace trucks feature rockered hangers, which are thicker in the center to provide strength against grind-shock and offset your grinds to keep you locked in. The low profile design combined with a lower kingpin reduces hang-ups.

SLAPPY TRUCKS / HAVE FUN WITH US

Designed and tested by skaters, for skaters; The Slappy ST1 Classic Trucks offers the best grind clearance in the game without compromising your turn. You get a light and strong truck with a classic look and feel to keep you rolling more comfortably than ever.

Features:

• Optimum grind clearance
• Polished hanger
• Polished baseplate
• Classic kingpin

***Sold as a pair

The ACE AF1 LOW features HOLLOW Kingpins for a lightweight, lower profile AF1. Carefully manufactured using our proprietary casting process, the AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.

• Truck height: 1.93" (49mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 10mm tall | 91a hardness
• Bottom Bushing: Bottom 12mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.

SLAPPY TRUCKS / HAVE FUN WITH US

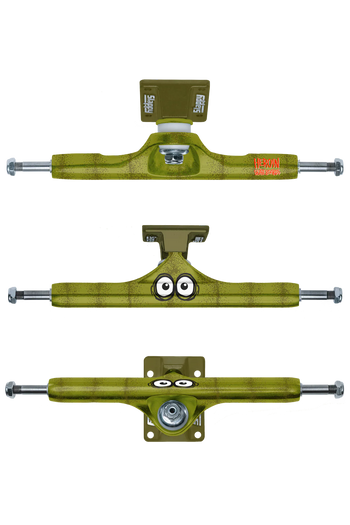

Designed and tested by skaters, for skaters; The Slappy ST1 Hollow Trucks offers the best grind clearance in the game without compromising your turn. You get a light and strong truck with a classic look and feel to keep you rolling more comfortably than ever with hollow kingpins and axles.

Features:

• Hollow kingpins and axles
• Optimum grind clearance
• Polished hanger
• Polished baseplate
• Classic kingpin

SLAPPY TRUCKS / HAVE FUN WITH US

• Aluminum Hanger and Baseplate
• Inverted Kingpin
• Quickest Turn
• Best Grind Clearance
• Less Wheel Bite
• No break in time
• 100% More Fun

SLAPPY TRUCKS / HAVE FUN WITH US

Designed and tested by skaters, for skaters; The Slappy ST1 Classic Trucks offers the best grind clearance in the game without compromising your turn. You get a light and strong truck with a classic look and feel to keep you rolling more comfortably than ever.

Features:

• Axle/Kingpin Style

  • Hollow Axle
  • Inverted Kingpin



  Baseplate Style

  • Standard

  AXLE/KINGPIN STYLE

  Hollow Axle - Hollow axle trucks cut down on the materials used in the axle, so your trucks feel lighter, because they are lighter.

  Inverted Kingpin - An inverted kingpin means the threads are in the trucks, meaning that even after prolonged grinding, you will always be able to tighten or loosen your trucks.

  NON-COMPATIBLE RISERS

  Risers from the following brands are not compatible with the baseplates of these trucks.

  Bear, Loaded, Paris, Rayne
  SPECS

  SIZE	8.0 AXLE	8.25 AXLE	8.5 AXLE	8.75 AXLE	9.0 AXLE
  HANGER (MM):	136.0	143.0	149.0	156.0	162.0
  BOARD RANGE (IN):	7.75 - 8.25	8.0 - 8.5	8.25 - 8.5	8.5 - 9.0	8.75 - 9.25
  HEIGHT (MM):	53.9	53.9	53.9	53.9	53.9
  WEIGHT (G):	354.0	362.0	368.0	370.0	383.0

Our Sidewinder II trucks feature a patented double kingpin style and best suited for carving. The knurled kingpins stay securely in place while riding and will allow you to carve harder, deeper and smoother than you’ve ever imagined! The 356 Aluminum and Chromoly axle have become the ‘gold-standard’ of the truck industry and have proven themselves through years of use and abuse.  This heat-treated aluminum cannot be die-cast, and is responsible for the strength and familiar grind characteristics you should expect from a quality truck. The embossed baseplate is also pocketed, for weight savings.

Additional benefits come from the integrated speed ring on both the hanger and axle nut. The rings provide improved alignment to your bearings, for better speed roll and longevity.  They also reduce friction, by only touching the inner race of the bearing and because they are integrated, you can’t lose them! Sidewinder II trucks feature a 6-hole baseplate for old school or new school mounting and come with 89A barrel/cone bushings.

The Lurpiv  is developed by Oskar Rozenberg. The truck has a solid aluminium body by casting with aerospace technology through Rheocasting. A new two-axle system, developed to ensure better grinds, durability and minimal weight. All components are of H7 grade to give the best handling performance.

• Aerospace Rheocasting AlSi7 T7 heat-treated solid body design
• Reveresed Kingpin with new “Grub Lock” Allen key 1/8
• 42CrMoS4 steel alloy axles and kingpin with h7 tolerance for maximum fitting
• Special design pivot bushing for sharper response
• Top and bottom bushings adapted for maximum stability and turning performance
• Designed with built in wheel washers on hanger and nuts to create minimum bearing friction

• Trucks are delivered as a set of two trucks.

Sold In Pairs (2)

Independent Skateboard Trucks Stage 11 Hockey Silver Croc Trucks are a limited edition release, boasting a sleek silver colorway with a distinctive crocodile texture. Crafted with precision and durability, these brand-new trucks offer top-notch performance for skateboarders seeking quality and style. The Stage 11 design ensures optimal turning and stability, making them a coveted choice among skating enthusiasts.

Independent skateboard trucks are sized based on the width of the skateboard deck they are intended to fit. Here's a breakdown of the sizing:

- 139: Suitable for skateboard decks with a width of 7.75" to 8.25".
- 144: Designed for skateboard decks with a width of 8.25" to 8.75".
- 149: Ideal for skateboard decks with a width of 8.5" to 9".
- 159: Recommended for skateboard decks with a width of 8.75" and larger.

It's crucial to match the truck size with the width of your skateboard deck to ensure proper performance and stability. Choosing the right truck size enhances your overall skateboarding experience.

The Lurpiv  is developed by Oskar Rozenberg. The truck has a solid aluminium body by casting with aerospace technology through Rheocasting. A new two-axle system, developed to ensure better grinds, durability and minimal weight. All components are of H7 grade to give the best handling performance.

• Aerospace Rheocasting AlSi7 T7 heat-treated solid body design
• Reveresed Kingpin with new “Grub Lock” Allen key 1/8
• 42CrMoS4 steel alloy axles and kingpin with h7 tolerance for maximum fitting
• Special design pivot bushing for sharper response
• Top and bottom bushings adapted for maximum stability and turning performance
• Designed with built in wheel washers on hanger and nuts to create minimum bearing friction

• Trucks are delivered as a set of two trucks.

Independent Trucks Bar trucks feature flat black hanger and baseplate with 2 color bar pad print, red cushions and pivot cup, and black and red hardware.

Durable all purpose truck for any type of skateboarding.

55mm tall for optimal performance and wheel clearance with wheels 56mm and under.

• Fit Polarizer Decks
• Sold as a set (2 trucks)
• 4140 Alloy Steel Axle
• 5140 Alloy Steel Kingpin
• Locking Kingpin Nut to Lock In Desired Adjustment
• Molded Cavity for Extra Kingpin Clearance
• Molded Baseplate Design for Better Skate Tool Clearance
• POLARIZER TRUCK ADJUSTMENT GUIDE
